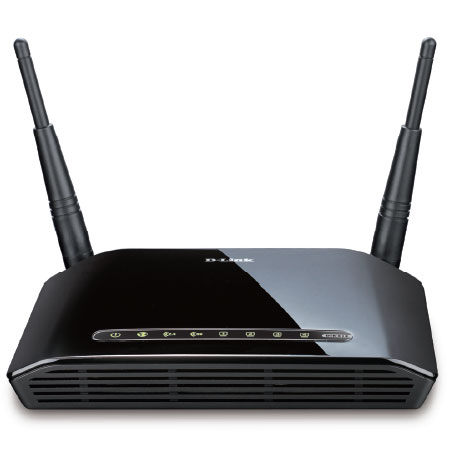

D-Link DIR-815 Wireless N Dual Band Router

prev next

  • NO.:000299
  • Brand:D-Link
    Package Weight:1.000kilogram
  • Orig.:US$149.98
    Registered users:US$99.99
    Rank: comment rank 5
  • Total:
  • Quantity:
  • forward to friends

Items Brief:


D-Link DIR-815 Wireless N Dual Band Router

*Features Dual Band technology for increased performance (up to 300mbps)
*D-Link Green, Energy Efficient Design

Powered by Wireless N technology, this high-performance router provides superior coverage designed to reduce dead spots for users who demand higher performance networking. Delivering incredible wireless performance, network security, and coverage, the Wireless N Dual Band Router (DIR-815) is ideal for networking in larger homes and offices. The D-Link® Wireless N Dual Band Router (DIR-815) features simultaneous wireless bands with a faster wireless network than previous generation wireless G devices, enabling you to create a faster Wi-Fi network with superior home coverage. Connect the DIR-815 to a cable or DSL modem and provide high-speed Internet access to multiple computers, game consoles, and media players. Create a secure wireless network to share photos, files, music, printers, and more, from greater distances throughout your entire home or office. With D-Link’s award-winning QoS engine that prioritizes time-sensitive online traffic, this router enables smooth Internet phone calls (VoIP) and responsive gaming.

Dual Band is two Wi-Fi networks in one router. The dual band technology in the DIR-815 supports both 2.4GHz and 5GHz wireless signals simultaneously. You can check e-mail and browse the Internet using the 2.4GHz band while playing games and streaming HD movies on the clearer 5GHz band. This prevents both signals from getting overloaded and avoids interference and lag when you’re watching movies or gaming.

The DIR-815 supports the latest wireless security features to help prevent unauthorized access, be it from over a wireless network or from the Internet. Support for WPA™ and WPA2™ standards ensure that you will be able to use the best possible encryption, regardless of your client devices. In addition, the DIR-815 Router utilizes dual active firewalls (SPI and NAT) to prevent potential attacks from across the Internet.

This DIR-815 uses powerful 802.11n technology with multiple intelligent antennas to maximize the speed and range of your wireless signal to significantly outperform previous-generation Wireless G MIMO devices*. The antennas on the DIR-815 make use of your home’s environment by bouncing multiple wireless signals off walls and ceilings to work around obstructions and help eliminate dead spots.

D-Link Green™ devices are about providing eco-friendly alternatives without compromising performance. They are designed to help conserve energy, protect our environment from harmful substances, and reduce waste by using recyclable packaging.

Automatically powers down ports that have no link
Budgets power output for different Ethernet cable lengths
Includes wireless LAN scheduling, which can shut down your wireless network when not in use for further power savings
Reduces energy consumption by using an Energy Star® qualified power adapter

Complies with the European Union's RoHS directive that restricts the use of certain hazardous materials
Uses recyclable packaging to help reduce waste that goes into the environment

*IEEE 802.11n, 802.11g, and 802.11a Compliant
*Dual Band Technology for Superior Wireless Performance
*Wi-Fi® Protected Setup™ (WPS) for simple Push-Button Wireless Network Configuration
*Built-in QoS Engine Enhances Internet Experience
*4-Port 10/100 Switch
*Supports Secure Wireless Encryption Using WPA™ or WPA2™
*24/7 Basic Installation Support

IEEE 802.11n1
IEEE 802.11g
IEEE 802.11b
IEEE 802.11a2
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
Device Interface
4 10/100 LAN Ports
1 10/100 WAN Port
External Antenna Type
Two (2) External Dipole Antennas
Wi-Fi Protected Access (WPA, WPA2)®
Advanced Firewall Features
Network Address Translation (NAT)
Stateful Packet Inspection (SPI)
VPN Pass-through / IPSec
Device Management
Internet Explorer® v7 or later; Mozilla Firefox® v3.0 or later; or other Java-enabled Browsers
WAN (10/100)
WLAN (Wireless Connection)
LAN (10/100)
FCC Class B
Item (WxDxH): 6.2" x 4.7" x 1.2" (157.5mm x 119.4mm x 30.5mm)
Packaging (WxDxH): 8.1" x 10.9" x 2.6" (205.7mm x 276.9mm x 66mm)
Item: 0.47 lbs (213.2grams)
Packaging: 1.0 lbs (453.6grams)
Operating Temperature
32°F to 104°F (0°C to 40°C)
1 Year Limited3
Recommended System Requirements
For Optimal Wireless Performance:
Dual Band Adapter (DWA-160)
Minimum System Requirements
Cable or DSL Modem
Computer with:
Windows® 74, Windows Vista®, Windows® XP SP34, or Mac OS® X (v10.4)5
Internet Explorer® v7 or Mozilla® Firefox® v3.0
CD-ROM Drive
Network Interface Card
For Internet Access:
Cable or DSL Modem
Subscription with an Internet Service Provider (ISP)
Package Contents
Wireless N Dual Band Router
2 Detachable Antennas
CAT5 Ethernet Cable
Power Adapter
CD-ROM with:
Installation Wizard
Product Documentation
