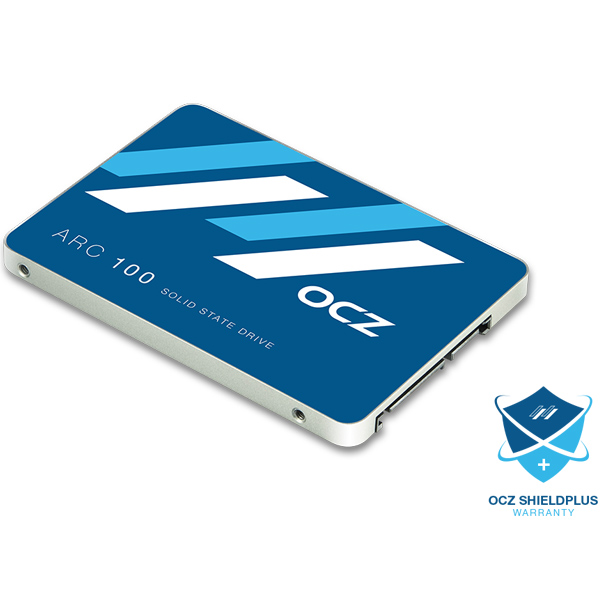

OCZ ARC 100 - SATA 3 2.5" SSD 480GB Drive

prev next

  • NO.:000621
  • Package Weight:500gram
  • Orig.:US$344.98
    Registered users:US$229.99
    Rank: comment rank 5
  • Total:
  • Quantity:
    Limit points for buying:200 integral
  • forward to friends

Items Brief:

Attribute

OCZ ARC 100 - SATA 3 2.5" SSD 480GB

Solid Performance for Notebooks and PCs
Think an SSD upgrade is out of your reach? Think again. With OCZ’s ARC 100 Series, get lasting SSD performance and an exceptional computing experience, all while delivering an excellent value for flash storage thrill seekers.

Putting Hard Drives to Shame
Imagine faster boot-ups, snappier file transfers, improved energy efficiency, and system responsiveness that make you wonder why you put up with that hard drive for so long. If you’re ready to make the leap to a more durable alternative to spinning discs, the ARC 100 Series is ready to take on your storage challenges at an upgrade-friendly price point.

ARC 100 SSD Features
Next Generation A19nm MLC NAND Flash
Cutting-edge A19nm process geometry NAND offers excellent value for consumer desktops and laptops

Enhanced Endurance
Emphasis on endurance, rated for 20GB/day of host writes for 3 years (typical client workloads)

Proprietary
Proprietary Barefoot 3 M10 controller technology delivers superior sustained speeds over the long term

Lasting Performance
Advanced suite of NAND flash management to analyze and dynamically adapt as flash cells wear

Bang for the Buck
Designed for value-minded users who want a performance SSD with no tricks up its sleeve

Superior Mixed Workload Performance
Excels in both incompressible and compressible data types such as multimedia, encrypted data,. ZIP files and software

Ultra Slim
Sleek alloy housing offers ultra-slim sub-7mm z-height for use in the latest thinner form factor notebooks

Secure
Superior reliability with in-house technology and high quality components based on the latest technology

University Learns Firsthand the Power of the ARC SSDs
After evaluating the OCZ ARC 100 Series, the university saw read and write performance increases of up to 300%! This not only helped to reduce costs, but the SSD also improved efficiency with the students’ work.

A Commitment to Quality
Learn about how our quality philosophy delivers premium solutions to customers through advanced product development and testing processes.


PHYSICAL
Usable Capacities (IDEMA) 480GB
NAND Components Toshiba A19nm Multi-Level Cell (MLC)
Interface Serial ATA (SATA) 6Gb/s (SATA III)
NAND Controller OCZ Barefoot 3 M10
Form Factor 2.5-inch, 7mm height (fits ultra-thin notebooks)
Dimension (L x W x H) 100.20 x 69.75 x 6.70 mm
Weight 110g
RELIABILITY / COMPATIBILITY
Data Path Protection BCH ECC corrects up to 44 random bits/1KB
MTBF 2 million hours
Encryption 256-bit AES-compliant
Product Health Monitoring Self-Monitoring, Analysis and Reporting Technology (SMART) Support
Endurance Rated for 20GB/day of host writes for 3 years under typical client workloads
Serial ATA (SATA) Fully compliant with Serial ATA International Organization: Serial ATA Revision 3.2. Fully compliant with ATA/ATAPI-8 Standard Native Command Queuing (NCQ)
Operating System Windows / Linux / Mac OSX
Power Requirements Standard SATA Power Connector
Targeted Applications Client desktops and laptops
ENVIRONMENTAL
Power Consumption Idle: 0.60W, Active: 3.450W
Operating Temperature 0°C ~ 70°C
Storage Temperature -45°C ~ 85°C
Shock Resistance 1000G/0.5ms
Vibration (Operational) 2.17Grms (7-800Hz)
Vibration (Non-operational) 3.13Grms (5-800Hz)
Altitude (Operational) -1,000ft. to 10,000ft
Altitude (Non-operational) -1,000ft. to 40,000ft
Certifications UL C/US, FCC, CE, C-Tick, KCC, BSMI, VCCI, WEEE
